EXHAUST GAS PRESSURE SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1223200

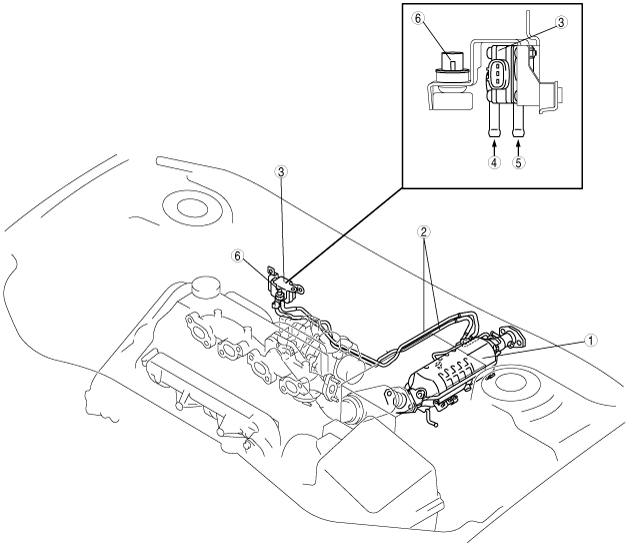

•  Installed to the dash lower panel in the engine compartment together with the exhaust gas pressure correction temperature sensor.
am3zzn00001637

1
Oxidation catalytic converter
2
Exhaust gas pressure pipe
3
Exhaust gas pressure sensor
4
Exhaust gas pressure before passing diesel particulate filter
5
Exhaust gas pressure after passing diesel particulate filter
6
Exhaust gas pressure correction temperature sensor

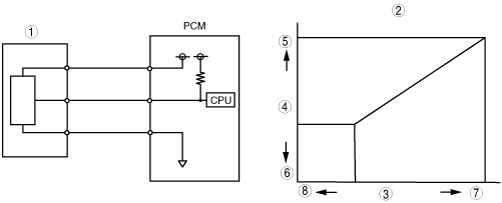

•  Converts the exhaust gas pressures before and after passing the diesel particulate filter to voltage signals and outputs them to the PCM.
•  A semiconductor type sensor has been adopted with a difference in electrical potential occurring when pressure is applied.
•  Output voltage from the exhaust gas pressure sensor increases as the difference in exhaust gas pressures increases.
am3zzn00001638

1
Exhaust gas pressure sensor
2
Exhaust gas pressure sensor output voltage characteristic
3
Difference in exhaust gas pressures
4
Output voltage
5
High
6
Low
7
Large
8
Small
