EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1223600

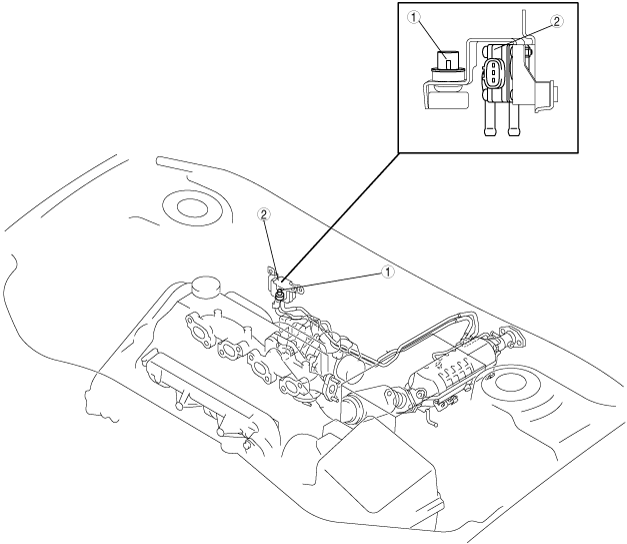

•  Installed to the dash lower panel in the engine compartment together with the exhaust gas pressure sensor.
am3zzn00001639

1
Exhaust gas pressure correction temperature sensor
2
Exhaust gas pressure sensor

•  The thermistor type exhaust gas pressure correction temperature sensor changes resistance according to the exhaust gas pressure sensor ambient temperature.
am3zzn00001640

1
Exhaust gas pressure correction temperature sensor
2
Thermistor

•  The resistance decreases if the exhaust gas pressure sensor ambient temperature increases and conversely increases if the exhaust gas pressure sensor ambient temperature decreases.
am3zzn00001641

1
Exhaust gas pressure correction temperature sensor
2
Exhaust gas pressure correction temperature sensor characteristic
3
Exhaust gas pressure sensor ambient temperature
4
Resistance
5
Large
6
Small
7
High
8
Low
