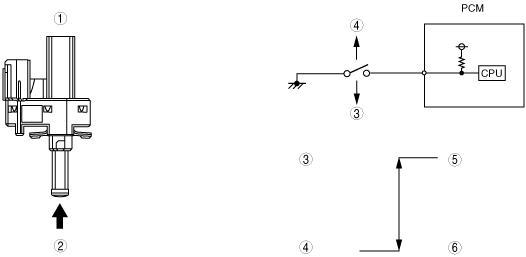

•  While the clutch pedal is depressed, the contact point closes (ON) and the PCM detects below 1.0 V. While the clutch pedal is released, the contact point opens (OFF) and the PCM detects B+.

am3zzn00001646

1	Clutch switch
2	Push off
3	Clutch pedal depressed (switch ON)
4	Clutch pedal released (switch OFF)
5	No load
6	Loaded
