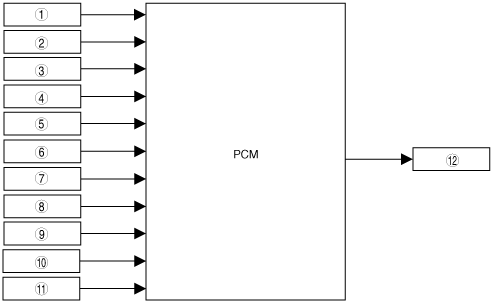

IDLE SPEED CONTROL BLOCK DIAGRAM [MZR-CD (RF Turbo)]
id0140f1737400
am3zzn00001557
|
|
1
|
Starter (starter signal)
|
|
2
|
Clutch switch
|
|
3
|
Neutral switch
|
|
4
|
PSP switch
|
|
5
|
Refrigerant pressure switch
|
|
6
|
APP sensor
|
|
7
|
ECT sensor
|
|
8
|
CKP sensor
|
|
9
|
Vehicle speed signal
|
|
10
|
Generator
|
|
11
|
Exhaust gas pressure sensor
|
|
12
|
Fuel injector
|
