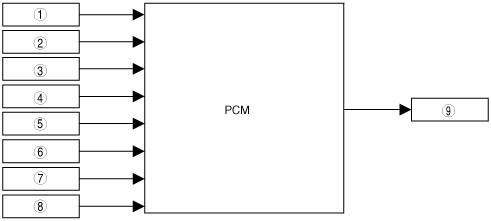

BOOST PRESSURE CONTROL BLOCK DIAGRAM [MZR-CD (RF Turbo)]
id0140f1737900
am3zzn00001591
|
|
1
|
Battery
|
|
2
|
Starter (starter signal)
|
|
3
|
APP sensor
|
|
4
|
ECT sensor
|
|
5
|
BARO sensor (integrated in PCM)
|
|
6
|
Boost sensor
|
|
7
|
CKP sensor
|
|
8
|
Vehicle speed signal
|
|
9
|
VBC solenoid valve
|
