BOOST SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]

id0140f1740300

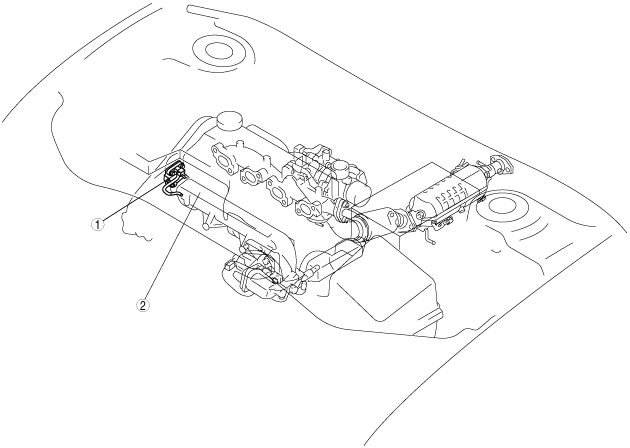

•  Installed on the intake manifold with the bracket.
am3zzn00001558

1
Boost sensor
2
Intake manifold

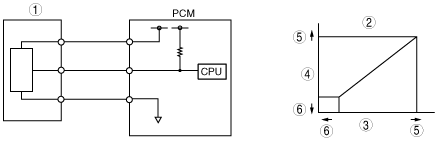

•  When pressure is applied to the piezoelectric element in the sensor, an electric potential difference occurs. Output voltage increases as the intake air pressure increases.
am3zzn00001559

1
Boost sensor
2
Boost sensor output voltage characteristic
3
Intake air pressure
4
Output voltage
5
High
6
Low
