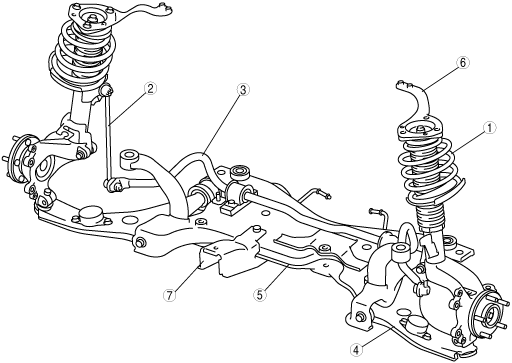

FRONT SUSPENSION STRUCTURAL VIEW

id021300100200

am3zzn00001449

1

Front shock absorber and coil spring

2

Front stabilizer control link

3

Front stabilizer

4

Front lower arm

5

Front crossmember

6

Strut plate (L3 Turbo)

7

Crossmember bracket (2WD)

1	Front shock absorber and coil spring
2	Front stabilizer control link
3	Front stabilizer
4	Front lower arm
5	Front crossmember
6	Strut plate (L3 Turbo)
7	Crossmember bracket (2WD)
