WHEEL HUB COMPONENT REMOVAL/INSTALLATION


id031200800400

Caution
•  Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor connector (body side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.

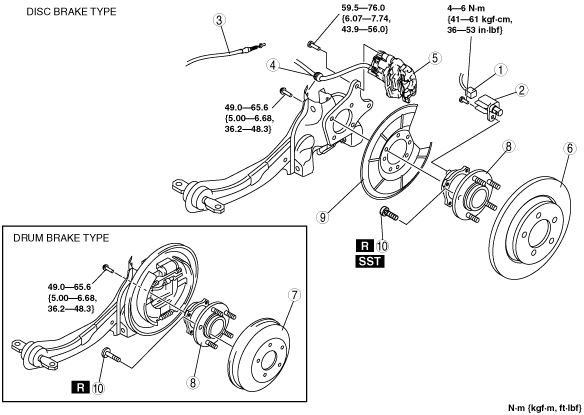

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am3zzw00004374

1
ABS wheel-speed sensor connector
2
ABS wheel-speed sensor
3
Parking brake cable (disc brake type)
4
Brake hose (disc brake type)
5
Brake caliper component (disc brake type)
6
Disc plate (disc brake type)
7
Brake drum component (drum brake type)
8
Wheel hub component
9
Dust cover
10
Wheel hub bolt


Brake Caliper Component Removal Note

1.  Remove the brake caliper component from the trailing link and suspend it out of the way using a cable.


Wheel hub component removal Note (Drum Brake Type)

1.  Remove the wheel hub component.

2.  Temporarily install the backing plate to the rear trailing link.


Wheel Hub Bolt Removal Note

Note
•  The hub bolts do not need to be removed unless they are being replaced.

1.  Remove the hub bolt using a press.

am3zzw00004375


Wheel Hub Bolt Installation Note

1.  Install the new hub bolt using a press.

acxjjw00001128
