DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY

id031300801700

Note

•  Verify the wheel hub locknut type of the vehicle before disassembling/assembling the drive shaft because the drive shaft specification is different depending on the wheel hub locknut type.

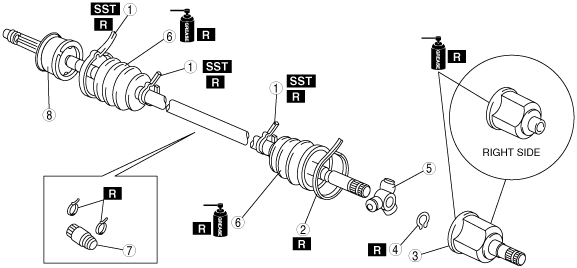

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

am3zzw00004405

1	Boot band (wheel side, transaxle side: smaller diameter) (See Boot Band (Wheel Side, Transaxle Side: Smaller Diameter) Disassembly Note.) (See Boot Band (Wheel Side, Transaxle Side Smaller Diameter) Assembly Note.)
2	Boot band (transaxle side larger diameter) (See Boot Band (Transaxle Side Larger Diameter) Disassembly Note.) (See Boot Band (Transaxle Side Larger Diameter) Assembly Note.)
3	Outer ring (See Outer Ring Disassembly Note.) (See Outer Ring Assembly Note.)
4	Snap ring (See Snap Ring, Tripod Joint Disassembly Note.) (See Tripod Joint, Snap Ring Assembly Note.)
5	Tripod joint (See Snap Ring, Tripod Joint Disassembly Note.) (See Tripod Joint, Snap Ring Assembly Note.)
6	Boot (See Boot Disassembly Note.) (See Boot Assembly Note.)
7	Dynamic damper (ZJ, ZY, Z6, LF and L3 (MTX/LH), LF and L3 (ATX/RH), MZR-CD (RF Turbo) (LH)) (See Dynamic Damper Assembly Note.)
8	Shaft and ball joint component

Boot Band (Wheel Side, Transaxle Side: Smaller Diameter) Disassembly Note

Note

•  Remove the boot band only if there is a malfunction.

1.  Remove the boot band using end clamp pliers.

am3zzw00004406

Boot Band (Transaxle Side Larger Diameter) Disassembly Note

1.  Pry up the boot band at the points indicated in the figure using pliers and remove the band.

am3zzw00004407

Outer Ring Disassembly Note

1.  Place an alignment mark on the drive shaft and outer ring.

am3zzw00004408

2.  Secure the drive shaft using a vise.

am5ezw00000034

3.  Tap the outer ring slightly by using a hummer and urethan bar or equivalent, and remove the outer ring from the drive shaft.

am5ezw00000035

Caution

•  Do not damage the roller.

Snap Ring, Tripod Joint Disassembly Note

1.  Place an alignment mark on the shaft and tripod joint.

2.  Remove the snap ring using snap ring pliers.

am3zzw00004409

3.  Remove the tripod joint from the shaft.

Caution

•  Do not tap the tripod joint with a hammer.

Boot Disassembly Note

Note

•  Remove the wheel side boot only if there is any malfunction.

1.  Wrap the shaft splines with tape.

am3zzw00004410

2.  Remove the boot.

Dynamic Damper Assembly Note

1.  Install the dynamic damper as shown in the figure.

am3zzw00004411

2.  Install a new boot band onto the dynamic damper.

Boot Assembly Note

Note

•  The boot shapes on the wheel side and the differential side are different. Do not install the wrong boot by mistake.

1.  Fill the inside of the new dust boot (wheel side) with grease.

Caution

•  Do not touch the grease with your hand. Apply it from the tube to prevent foreign matter from entering the boot.

Engine	Transaxle	Wheel hub locknut type	Grease amount (g {oz})
ZJ	F35M-R	Crimped-fix	LH: 103—113 {3.64—3.98}
		Self-locking	LH: 91—101 {3.21—3.56}
ZY	F35M-R	Crimped-fix	LH: 103—113 {3.64—3.98}
		Self-locking	LH: 91—101 {3.21—3.56}
	FN4A-EL	Crimped-fix	103—113 {3.64—3.98}
		Self-locking	91—101 {3.21—3.56}
Z6	F35M-R	Crimped-fix	LH: 103—113 {3.64—3.98}
		Self-locking	LH: 91—101 {3.21—3.56}
	FN4A-EL	Crimped-fix	103—113 {3.64—3.98}
		Self-locking	91—101 {3.21—3.56}
LF	G35M-R	Crimped-fix	LH: 105—115 {3.71—4.01}
		Self-locking
	G66M-R	Crimped-fix
		Self-locking
	FN4A-EL	Crimped-fix	103—113 {3.64—3.98}
		Self-locking	91—101 {3.21—3.56}
	FS5A-EL	Crimped-fix	103—113 {3.64—3.98}
		Self-locking	91—101 {3.21—3.56}
L3	G66M-R	Crimped-fix	LH: 105—115 {3.71—4.01}
		Self-locking
	FS5A-EL	Crimped-fix	103—113 {3.64—3.98}
		Self-locking
L3 Turbo	A26M-R	Crimped-fix	LH: 120—130 {4.24—4.58}
		Self-locking
MZR-CD (RF Turbo)	A26M-R	Crimped-fix	LH: 95—115 {3.36—4.05}
		Self-locking

2.  Install the boot with the drive shaft spline still wrapped with vinyl tape.

3.  Remove the vinyl tape.

Tripod Joint, Snap Ring Assembly Note

1.  While aligning the marks on the shaft and the tripod joint, insert the tripod joint using a bar and a hammer.

am3zzw00004412

Caution

•  Do not tap the roller with a hammer.

2.  Insert a new snap ring using snap ring pliers.

Caution

•  Be sure the snap ring engages correctly in the groove of the shaft.

Outer Ring Assembly Note

1.  Fill the outer ring and boot (transaxle side) with the specified grease.

Caution

•  Do not touch the grease with your hand. Apply it from the tube to prevent foreign matter from entering the boot.

Engine	Transaxle	Grease amount (g {oz})
ZJ	F35M-R	LH: 127—141 {4.49—4.97}
ZY	F35M-R	LH: 127—141 {4.49—4.97}
	FN4A-EL	127—141 {4.49—4.97}
Z6	F35M-R	LH: 127—141 {4.49—4.97}
	FN4A-EL	127—141 {4.49—4.97}
LF	G35M-R	LH: 153—163 {5.40—5.75}
	G66M-R
	FN4A-EL	105—119 {3.71—4.20}
	FS5A-EL
L3	G66M-R	LH: 153—163 {5.40—5.75}
	FS5A-EL	105—119 {3.71—4.20}
L3 Turbo	A26M-R	LH: 174—188 {6.15—6.63}
MZR-CD (RF Turbo)	A26M-R	LH: 139—167 {4.91—5.89}

2.  Secure the outer ring using a vise.

am5ezw00000039

Caution

•  Do not damage or deform the oil seal.

3.  Align the roller with the outer ring, tap the roller slightly using a hummer and urethan bar or equivalent, and install the drive shaft to the outer ring with keeping the drive shaft verticality.

am5ezw00000040

4.  Set the drive shaft to the standard length.

Front drive shaft standard length (General (L.H.D. R.H.D.) Specs.)

5.  Release any trapped air from the boots by carefully lifting up the small end of each boot with a cloth wrapped screwdriver.

am3zzw00004413

Caution

•  Do not let the grease leak.

•  Do not damage the boot.

6.  Verify that the drive shaft length is within the specification under atmospheric pressure inside the boot.

•  If not within the specification, repeat from Step 4.

Boot Band (Transaxle Side Larger Diameter) Assembly Note

1.  Pry up the boot band at the points indicated in the figure using pliers and tighten the boot band.

am3zzw00004414

Caution

•  Verify that the boot band is installed securely to the boot slot.

Boot Band (Wheel Side, Transaxle Side Smaller Diameter) Assembly Note

1.  Adjust opening width A by turning the adjusting bolt of the SST.

am3zzw00004415

2.  Crimp the wheel side small boot band completely closed so there is no gap using the SST.

am3zzw00002042

3.  Verify that the boot band does not protrude from the boot band installation area.

•  If the boot band protrudes from the boot band installation area, replace the boot band and repeat Step 2.

4.  Fill the boot with the repair kit grease.

5.  Adjust opening width A of the SST to the specification.

6.  Crimp the wheel side large boot band completely closed so there is no gap using the SST.

7.  Verify that the boot band does not protrude from the boot band installation area.

•  If the boot band protrudes from the boot band installation area, replace the boot band and repeat Step 6.
