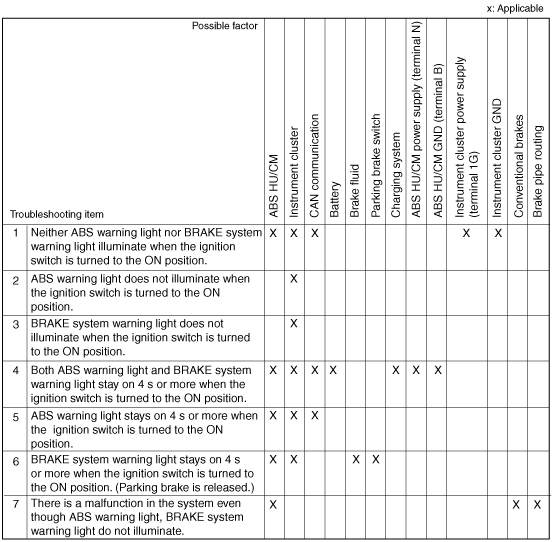

1

Neither ABS warning light nor BRAKE system warning light illuminate when the ignition switch is turned to the ON position.

2

ABS warning light does not illuminate when the ignition switch is turned to the ON position.

3

BRAKE system warning light does not illuminate when the ignition switch is turned to the ON position.

4

Both ABS warning light and BRAKE system warning light stay on 4 s or more when the ignition switch is turned to the ON position.

5

ABS warning light stays on 4 s or more when the ignition switch is turned to the ON position.

6

BRAKE system warning light stays on 4 s or more when the ignition switch is turned to the ON position. (Parking brake is released.)

7

There is a malfunction in the system even through ABS warning light, BRAKE system warning light, do not illuminate.

8

Any of the following lights do not illuminate when the ignition switch is turned to the ON position.

9

Any of the following lights remain on:

10

There is a malfunction in the system even though ABS warning light, BRAKE system warning light, DSC indicator light and DSC OFF light do not illuminate.

11

ABS or TCS^*1 operates frequently.

TCS does not work correctly.

12

DSC^*2 operates frequently.

DSC does not work correctly.
