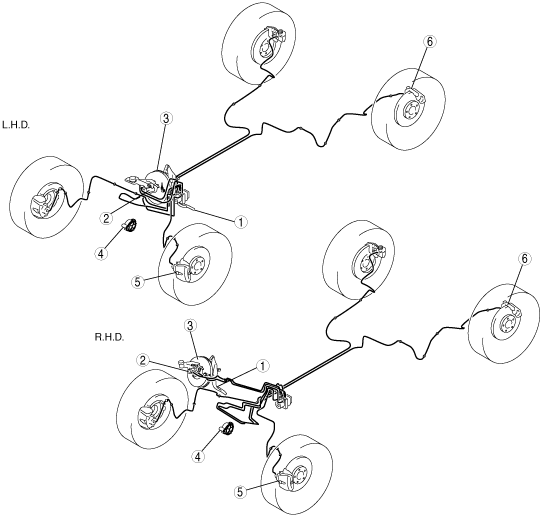

CONVENTIONAL BRAKE SYSTEM STRUCTURAL VIEW
id041100100200
European (L.H.D. U.K.) specs.
am3zzn00001270
|
|
1
|
Brake pedal
|
|
2
|
Master cylinder
|
|
3
|
Power brake unit
|
|
4
|
Vacuum pump (MZ-CD 1.6 (Y6), MZR-CD (RF Turbo))
|
|
5
|
Front brake (disc)
|
|
6
|
Rear brake (disc)
|
Australian, General (L.H.D. R.H.D.) specs.
am3zzn00001719
|
|
1
|
Brake pedal
|
|
2
|
Master cylinder
|
|
3
|
Power brake unit
|
|
4
|
Vacuum pump (MZR-CD (RF Turbo))
|
|
5
|
Proportioning valve
|
|
6
|
Front brake (disc)
|
|
7
|
Rear brake (disc)
|
|
8
|
Rear brake (drum)
|
