DISC PAD (REAR) REPLACEMENT

id041100800300

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, pump the brake pedal a few times and inspect the following:

―  Parking brake lever stroke

―  Brake drag

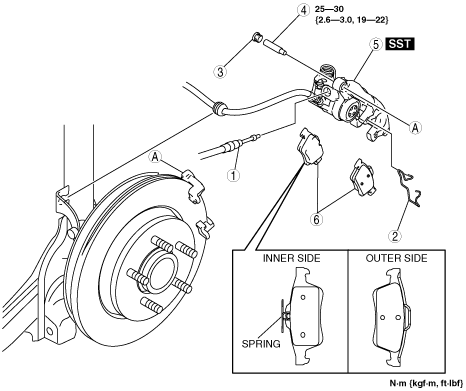

am3zzw00004287

1	Parking brake cable
2	Retaining clip
3	Cap
4	Bolt
5	Caliper (See Caliper Installation Note.)
6	Disc pad

Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Install the SST (49 F043 002) to the SST (49 B043 005).

aaxjjw00003396

3.  Align the SST projection to the piston groove.

4.  Rotate part A on the SST in the direction of the arrow and secure the SST to the caliper.

aaxjjw00003423

5.  Rotate the SST in the direction of the arrow and push the piston completely into the caliper.

aaxjjw00003398

Note

•  Even with the piston completely pushed in, the top of the piston projects from the dust seal by approximately 2 mm{0.09 in}.

6.  Rotate part A on the SST in the direction of the arrow using the tool and remove the SST from the caliper.

aaxjjw00003425

7.  Install the caliper to the vehicle.
