DISC PAD (FRONT) REPLACEMENT[EXCEPT L3 Turbo]

id041100800789

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, pump the brake pedal a few times and verify that the brakes do not drag.

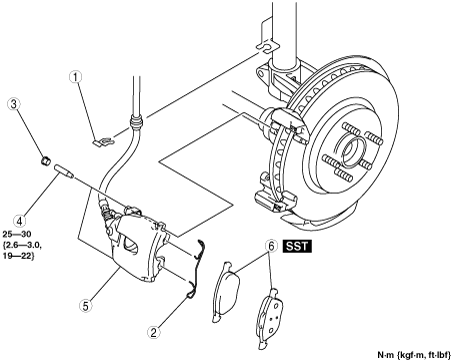

am3zzw00002602

1	Clip
2	Retaining clip
3	Cap
4	Bolt
5	Caliper
6	Disc pad (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION[EXCEPT L3 Turbo].)
