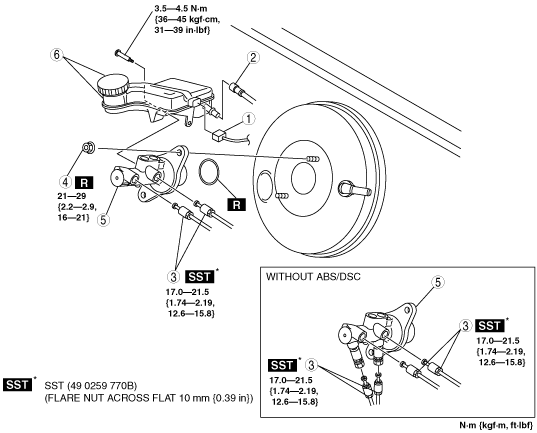

MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D. EXCEPT L3 Turbo]
id041100801353
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
am3zzw00003153
|
|
1
|
Brake fluid level sensor connector
|
|
2
|
Reserve hose (MTX)
|
|
3
|
Brake pipe
|
|
4
|
Nut
|
|
5
|
Master cylinder
|
|
6
|
Reserve tank, cap
|
Reserve Hose (MTX) Removal Note (Except MZR-CD (RF Turbo))
1. Remove the reserve hose from the reserve tank while pressing the point indicated by the arrow in the figure.
am3zzw00003154
|
Reserve Hose (MTX) Removal Note (MZR-CD (RF Turbo))
1. Disconnect the reserve hose from the master cylinder using a flathead screwdriver as shown in the figure.
am3zzw00003141
|
Reserve Hose (MTX) Installation Note (Except MZR-CD (RF Turbo))
1. Insert the reserve hose to the reserve tank until a click is heard.
2. Verify that the reserve hose is firmly installed by pulling it, and push it into the reserve tank again.
Reserve Hose (MTX) Installation Note (MZR-CD (RF Turbo))
1. Insert the reserve hose straight into the master cylinder as shown in the figure.
am3zzw00003142
|
2. Press the clip in after the reserve hose is inserted completely.
3. Pull the reserve hose to verify that it does not come off, and reinsert it completely.
