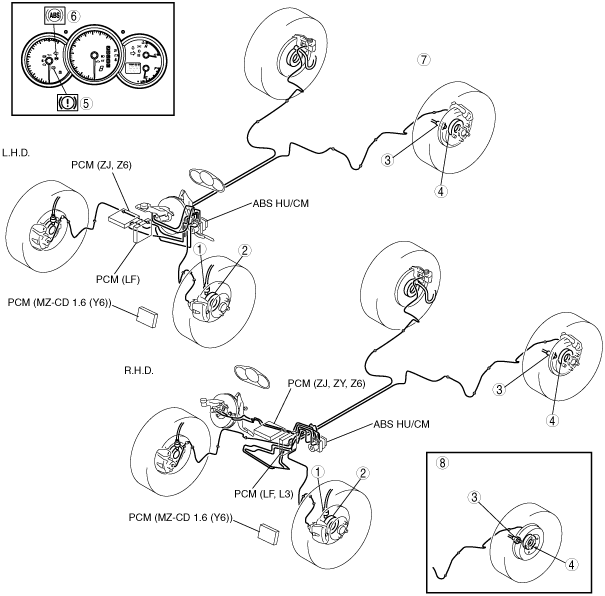

ABS STRUCTURAL VIEW
id041300184900
am3zzn00001284
|
|
1
|
Front ABS wheel-speed sensor
|
|
2
|
Front ABS sensor rotor
|
|
3
|
Rear ABS wheel-speed sensor
|
|
4
|
Rear ABS sensor rotor
|
|
5
|
Brake system warning light
|
|
6
|
ABS warning light
|
|
7
|
Disc brake type
|
|
8
|
Drum brake type
|
