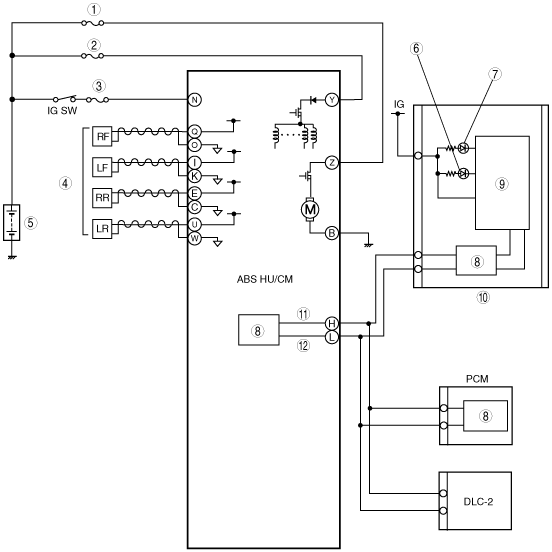

ABS SYSTEM WIRING DIAGRAM
id041300185000
am3zzn00000786
|
|
1
|
ABS 1 30A fuse
|
|
2
|
ABS 2 20A fuse
|
|
3
|
ABS IG 10A fuse
|
|
4
|
ABS wheel-speed sensor
|
|
5
|
Battery
|
|
6
|
Brake system warning light
|
|
7
|
ABS warning light
|
|
8
|
CAN driver
|
|
9
|
Microcomputer
|
|
10
|
Instrument cluster
|
|
11
|
CAN_H
|
|
12
|
CAN_L
|
