EBD CONTROL OUTLINE

id041300185800

•  EBD control uses the ABS system to control brake fluid pressure distribution to the rear wheels so that they do not lock-up prior to the front wheels during braking, thereby preventing the loss of handling stability.

Features

•  EBD control has independent control systems for both the front and rear wheels.
•  EBD control constantly and properly distributes brake fluid pressure regardless of vehicle weight.

STRUCTURE

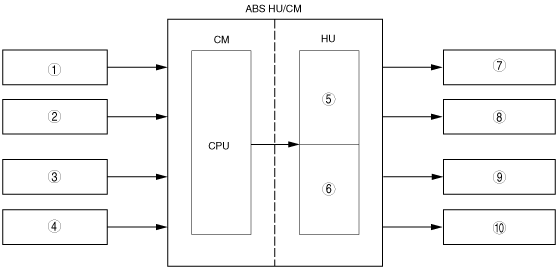

Block Diagram

b3e0413t010

1
ABS wheel-speed sensor (LF)
2
ABS wheel-speed sensor (RF)
3
ABS wheel-speed sensor (LR)
4
ABS wheel-speed sensor (RR)
5
Solenoid valve
6
Pump motor
7
Caliper piston (LF)
8
Caliper piston (RF)
9
Caliper piston (LR)
10
Caliper piston (RR)
