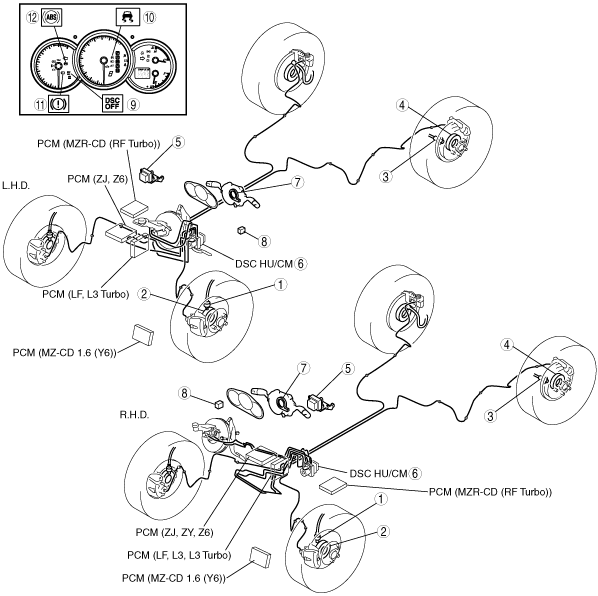

DYNAMIC STABILITY CONTROL (DSC) STRUCTURAL VIEW
id041500100400
am3zzn00001687
|
|
1
|
Front ABS wheel-speed sensor
|
|
2
|
Front ABS sensor rotor
|
|
3
|
Rear ABS wheel-speed sensor
|
|
4
|
Rear ABS sensor rotor
|
|
5
|
Combined sensor
|
|
6
|
Brake fluid pressure sensor (Built into DSC HU/CM)
|
|
7
|
Steering angle sensor
|
|
8
|
DSC OFF switch
|
|
9
|
DSC OFF light
|
|
10
|
DSC indicator light
|
|
11
|
Brake system warning light
|
|
12
|
ABS warning light
|
