FOREWORD[FN4A-EL]

id0502a1800200

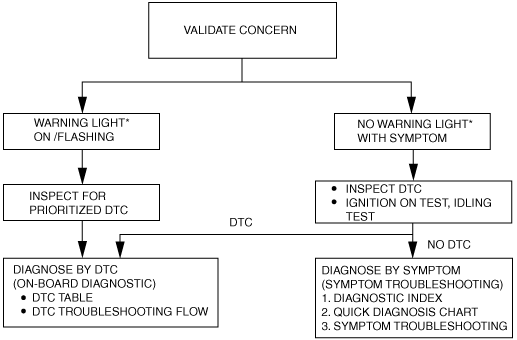

• When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL), AT warning light indication, and PCM memory for diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.

― If a DTC exists, diagnose the applicable DTC. (See DTC TABLE[FN4A-EL].)

― If no DTC exists, the MIL does not illuminate, and AT warning light does not illuminate. Diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE[FN4A-EL].)

am3zzw00002419

*: Malfunction indicator lamp (MIL), AT warning light
