DUAL-MASS FLYWHEEL FUNCTION[J65M-R]


id0510001001a2

•  The dual-mass flywheel has separated primary and secondary mass that are joined through the planetary gear, and a torsional damper that is located inside the flywheel. Due to this structure, the transaxle mainshaft rotation can be stabilized, decreasing noise inside the transaxle (gear teeth rattling) created by engine speed fluctuation and thereby greatly reducing vehicle booming noise also.

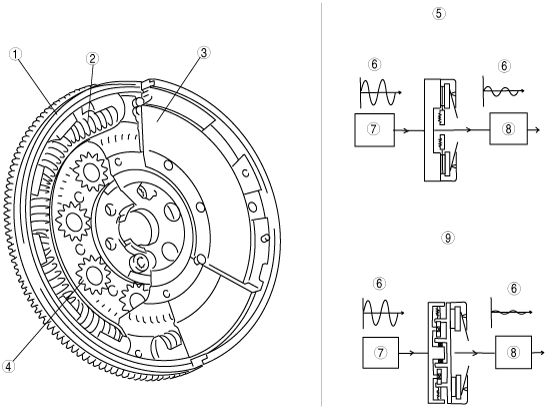

am3zzn00000279

1
Primary flywheel
2
Torsional damper
3
Secondary flywheel
4
Planetary gear
5
Without dual-mass flywheel
6
RPM friction
7
Engine
8
Transaxle
9
With dual-mass flywheel
