CLUTCH COVER[J65M-R]
id0510001002a2
Outline
• The wear assurance function of the clutch cover maintains the set load of the clutch cover unchanged even as the clutch disc becomes worn, thereby extending disc life.
Operation
• As the clutch disc becomes worn, the adjustment rings slide sideways to automatically adjust the application point height (adjustment rings height) of the diaphragm springs. Due to this, the diaphragm spring angle is maintained at a constant value. The movement of the adjustment rings is controlled by the stopper and hold down spring to maintain the adjustment rings at a constant optimum height.
-
― If the clutch cover is removed without releasing the stopper, the adjustment function may become inoperable. In this case, the clutch cover and disc must be replaced with new parts.
|

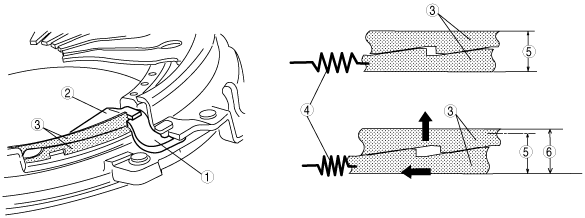

1
|
Stopper
|
|
2
|
Hold down spring
|
|
3
|
Adjustment rings
|
|
4
|
Ring control spring
|
|
5
|
Before adjusting height
|
|
6
|
After adjusting height
|
|
1
|
Adjustment rings
|
|
2
|
Hold down spring
|
|
3
|
Diaphragm spring angle
|
|
4
|
Clutch disc
|
