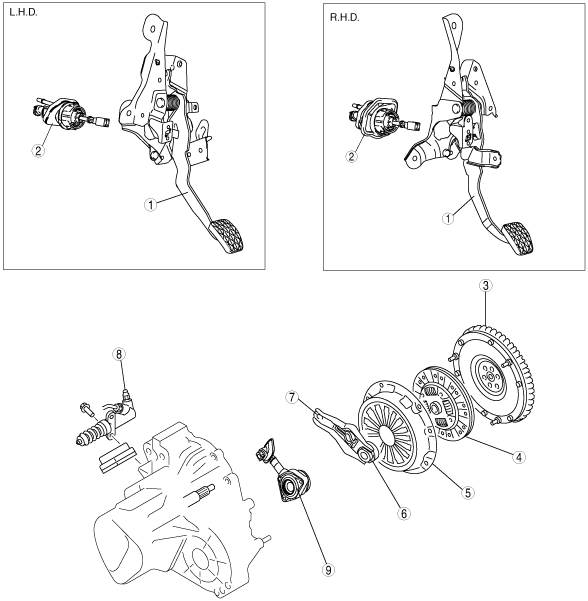

CLUTCH STRUCTURAL VIEW

id051000100500

am3zzn00000278

1

Clutch pedal

2

Clutch master cylinder

3

Flywheel

4

Clutch disc

5

Clutch cover

6

Clutch release collar (F35M-R, G35M-R, G66M-R, A26M-R)

7

Clutch release fork (F35M-R, G35M-R, G66M-R, A26M-R)

8

Clutch release cylinder (F35M-R, G35M-R, G66M-R, A26M-R)

9

Clutch release cylinder component (J65M-R)

1	Clutch pedal
2	Clutch master cylinder
3	Flywheel
4	Clutch disc
5	Clutch cover
6	Clutch release collar (F35M-R, G35M-R, G66M-R, A26M-R)
7	Clutch release fork (F35M-R, G35M-R, G66M-R, A26M-R)
8	Clutch release cylinder (F35M-R, G35M-R, G66M-R, A26M-R)
9	Clutch release cylinder component (J65M-R)
