CONTROL ROD[F35M-R]

id0515a1100000

Construction/Operation

• Movement of the shift lever when operated is transmitted as follows, resulting in gear shifting: cable→shift lever shaft→crank lever →control rod.

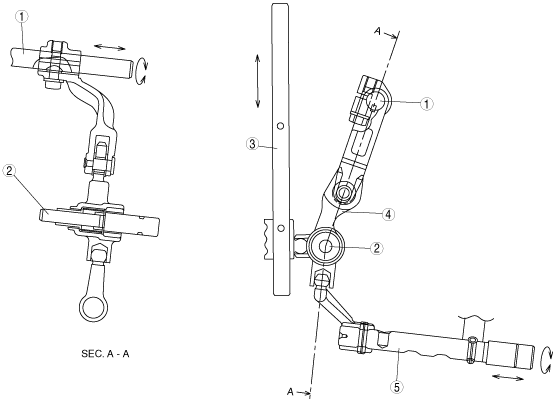

am3zzn00000269

1

Shift lever shaft

2

Crank lever shaft

3

Control rod

4

Crank lever

5

Control rod
