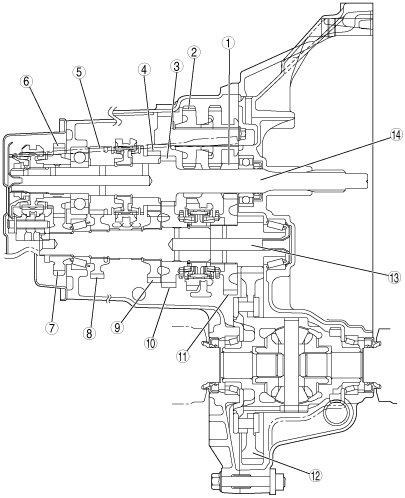

MANUAL TRANSAXLE CROSS-SECTIONAL VIEW[F35M-R]
id0515a1100700
am3zzn00000266
|
|
1
|
1st gear
|
|
2
|
Reverse idler gear
|
|
3
|
2nd gear
|
|
4
|
3rd gear
|
|
5
|
4th gear
|
|
6
|
5th gear
|
|
7
|
Secondary 5th gear
|
|
8
|
Secondary 4th gear
|
|
9
|
Secondary 3rd gear
|
|
10
|
Secondary 2nd gear
|
|
11
|
Secondary 1st gear
|
|
12
|
Differential gear
|
|
13
|
Secondary shaft
|
|
14
|
Primary shaft
|
am3zzn00000267
|
|
1
|
Reverse lever
|
|
2
|
Reverse link parts
|
|
3
|
Control rod
|
|
4
|
Detent ball
|
|
5
|
Control rod end
|
|
6
|
Crank lever
|
|
7
|
Shift rod
|
