MANUAL TRANSAXLE CROSS-SECTIONAL VIEW[J65M-R]
id0515c1100700

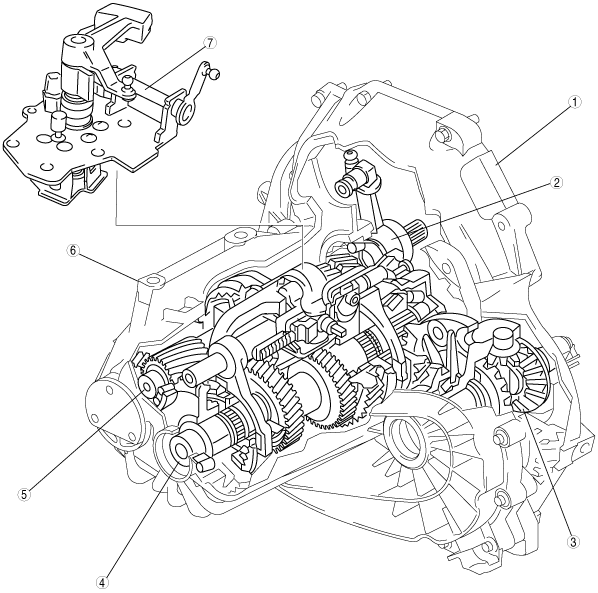

b3e0515t030
|
|
1
|
Clutch housing
|
|
2
|
Clutch release cylinder
|
|
3
|
Differential
|
|
4
|
Secondary shaft gear component
|
|
5
|
Primary shaft gear component
|
|
6
|
Transaxle case
|
|
7
|
Shift mechanism
|

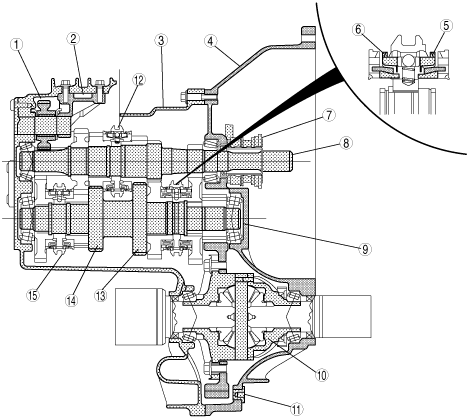

b3e0515t049
|
|
1
|
Reverse idler gear
|
|
2
|
Reverse idler gear shaft mount
|
|
3
|
Transaxle case
|
|
4
|
Clutch housing
|
|
5
|
1st double synchronizer
|
|
6
|
2nd double synchronizer
|
|
7
|
Release cylinder component
|
|
8
|
Primary shaft
|
|
9
|
Secondary shaft
|
|
10
|
Differential
|
|
11
|
Drain plug
|
|
12
|
3rd and 4th synchronizer
|
|
13
|
3rd gear
|
|
14
|
4th gear
|
|
15
|
5th and reverse synchronizer
|
