PRIMARY AND SECONDARY SHAFT STRUCTURE[J65M-R]
id0515c1101000

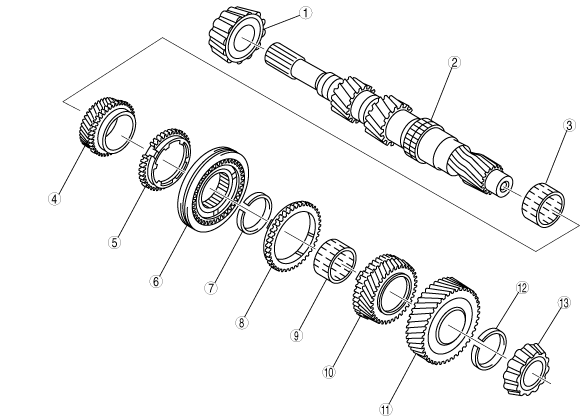

Primary Shaft
b3e0515t040
|
|
1
|
Roller bearing
|
|
2
|
Primary shaft
|
|
3
|
Needle roller bearing for 3rd gear
|
|
4
|
Primary 3rd gear
|
|
5
|
3rd gear synchronizer ring
|
|
6
|
3rd and 4th gear synchronizer component
|
|
7
|
Snap ring
|
|
8
|
4th gear synchronizer ring
|
|
9
|
4th gear needle roller bearing
|
|
10
|
Primary 4th gear
|
|
11
|
Primary 5th gear
|
|
12
|
Snap ring
|
|
13
|
Roller bearing
|
Secondary Shaft
b3e0515t043
|
|
1
|
Roller bearing
|
|
2
|
Output drive pinion
|
|
3
|
Secondary shaft
|
|
4
|
1st gear needle roller bearing
|
|
5
|
Secondary 1st gear
|
|
6
|
1st gear inner synchronizer ring
|
|
7
|
1st gear synchronizer cone
|
|
8
|
1st gear outer synchronizer ring
|
|
9
|
1st and 2nd gear synchronizer component
|
|
10
|
Snap ring
|
|
11
|
2nd gear outer synchronizer ring
|
|
12
|
2nd gear synchronizer cone
|
|
13
|
2nd gear inner synchronizer ring
|
|
14
|
Secondary 2nd gear
|
|
15
|
2nd gear needle roller bearing
|
|
16
|
Secondary 3rd gear
|
|
17
|
Secondary 4th gear
|
|
18
|
Snap ring
|
|
19
|
5th gear needle roller bearing
|
|
20
|
Secondary 5th gear
|
|
21
|
5th gear synchronizer ring
|
|
22
|
5th gear and reverse gear synchronizer component
|
|
23
|
Snap ring
|
|
24
|
Reverse gear synchronizer ring
|
|
25
|
Reverse gear needle roller bearing
|
|
26
|
Reverse gear
|
|
27
|
Roller bearing
|
