REVERSE LOCKOUT MECHANISM OPERATION[J65M-R]

id0515c1101200


Structure

•  If, when downshifting from 5th to 4th, the gear shift lever is shifted into reverse unintentionally, the reverse gate locks the gear shift lever’s movement to prevent operation error.
When shifting again into reverse, temporarily returning the gear shift lever to the neutral position to push out the reverse gate cancels the lock and enables shifting to take place.

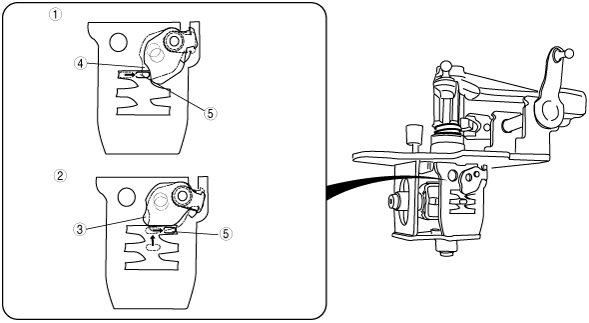

b3b0515t060

1
Gear shifting from 5th to reverse directory
2
Gear shifting from 5th reverse via neutral position
3
Cancels lockout
4
Prevents shifting
5
Selector finger
