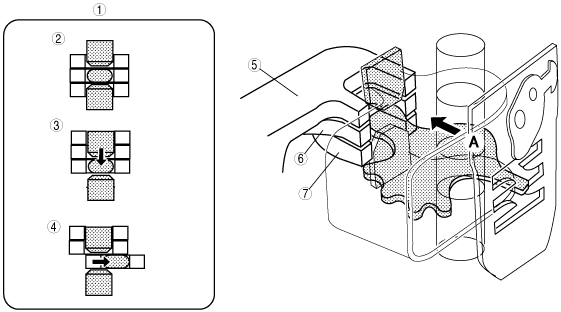

SHIFT INTERLOCK MECHANISM STRUCTURE[J65M-R]

1	View from A
2	Neutral condition
3	Select condition
4	Shift condition (1st gear)
5	5th/reverse shift fork
6	3rd/4th shift fork
7	1st/2nd shift fork

• The shift interlock mechanism and the shift and selector finger are mounted on a sleeve in the shift mechanism housing and keep the selected gear engaged with the aid of a spring-loaded ball until another gear is selected.

The shift interlock mechanism has three positions.

am3zzn00000277

1

Shift mechanism housing

2

Position of 1st, 3rd and 5th gear shift finger

3

Neutral position of shift finger

4

Position of 2nd, 4th and reverse gear shift finger

5

Shift shaft

6

Selector finger

7

Reverse gear lock

1	Shift mechanism housing
2	Position of 1st, 3rd and 5th gear shift finger
3	Neutral position of shift finger
4	Position of 2nd, 4th and reverse gear shift finger
5	Shift shaft
6	Selector finger
7	Reverse gear lock
