SHIFT INTERLOCK MECHANISM OPERATION[G66M-R]


id0515k1101400


Structure

•  During shifting, the shift rods, except for the one in operation, are locked in the neutral position by the interlock sleeve.

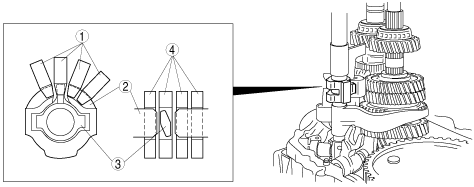

Neutral condition

•  The interlock sleeve fits into the notches of the 1st/2nd, 5th/6th and reverse shift forks.
The control lever fits into the notch of the 3rd/4th shift fork.
d6e515bt3005

1
Shift fork
2
Interlock sleeve
3
Control lever
4
Shift fork


Select condition

•  The shift lever is moved laterally to the 1st/2nd position.
Both the control lever and the interlock sleeve turn in the direct shown by the arrow.
The control lever fits into the notch of the 1st/2nd shift fork.
The interlock sleeve fits into the notches of the 3rd/4th, 5th/6th and reverse shift forks.
d6e515bt3006

1
Shift fork (1st/2nd)


Shift condition

•  The shift lever is moved vertically to the 2nd position.
The control lever moves up the 1st/2nd shift fork and the change to 2nd gear is complete.
The interlock sleeve holds the 3rd/4th, 5th/6th and reverse shift forks at the neutral position, preventing double engagement of gears.
The operation procedure is the same for other gear positions.
d6e515bt3007

1
Shift fork (5th/6th)
2
Shift fork (3rd/4th)
3
Shift fork (reverse)
