TRIPLE CONE SYNCHRONIZER MECHANISM STRUCTURE[G66M-R]

id0515k1101800


Features

•  A triple cone synchronizer mechanism is used for the 1st and 2nd gears.
•  The triple cone synchronizer mechanism is a compact device capable of heavy duty meshing.
•  The synchronizer mechanism reduces meshing time and improves operation.
•  The triple cone synchro mechanism includes a synchronizer ring, double cone, and an inner cone.
•  The inner part of the inner cone is used as a friction surface.

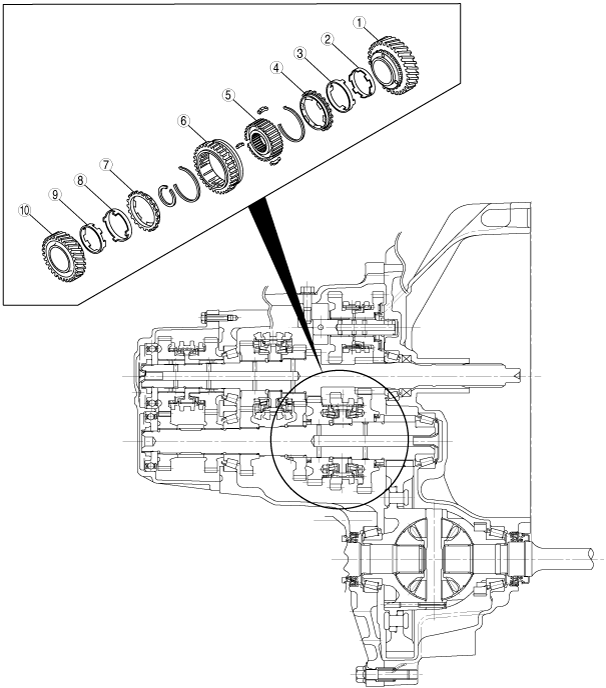

Structure

am3zzn00000257

1
1st gear
2
Inner cone
3
Double cone
4
Synchronizer ring
5
Clutch hub
6
Clutch hub sleeve
7
Synchronizer ring
8
Double cone
9
Inner cone
10
2nd gear
