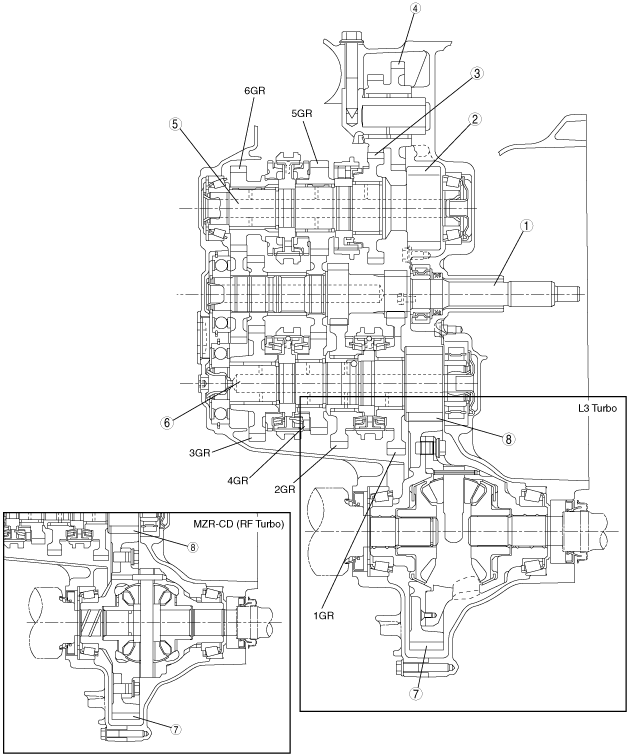

MANUAL TRANSAXLE CROSS-SECTIONAL VIEW [A26M-R]

id0515l1100700

am3zzn00001708

1

Primary shaft

2

Final gear No.2

3

Reverse gear

4

Reverse idler gear

5

Secondary shaft No.2

6

Secondary shaft No.1

7

Differential ring gear

8

Final gear No.1

1	Primary shaft
2	Final gear No.2
3	Reverse gear
4	Reverse idler gear
5	Secondary shaft No.2
6	Secondary shaft No.1
7	Differential ring gear
8	Final gear No.1
