SUPER-LSD CONSTRUCTION [A26M-R (L3 Turbo)]


id0515l3220600

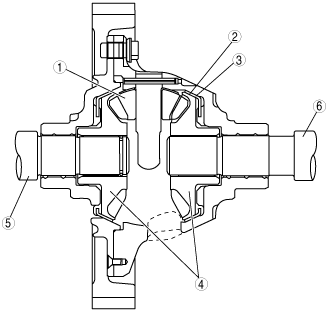

•  Inside the super-LSD, taper rings that are fixed to the differential gear case have been placed between the differential gear case and the side gears. Additionally, a cone is provided around the outer surface of the side gear.
am3zzn00001465

1
Pinion gear
2
Cone
3
Taper Ring
4
Side gear
5
Drive shaft
6
Joint shaft
