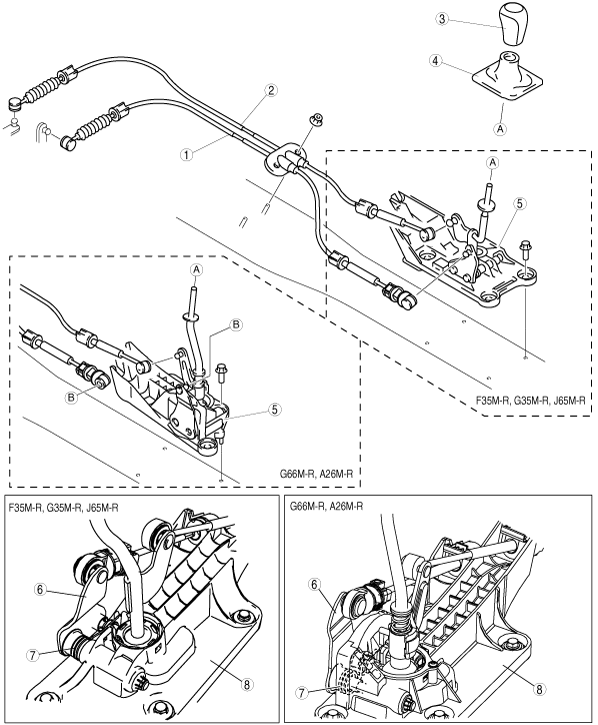

STRUCTURAL VIEW
id051600100200
am3zzn00001404
|
|
1
|
Main select cable
|
|
2
|
Main shift cable
|
|
3
|
Shift lever knob
|
|
4
|
Boot panel
|
|
5
|
Shift lever component
|
|
6
|
Select arm
|
|
7
|
Select spring
|
|
8
|
Base plate
|
