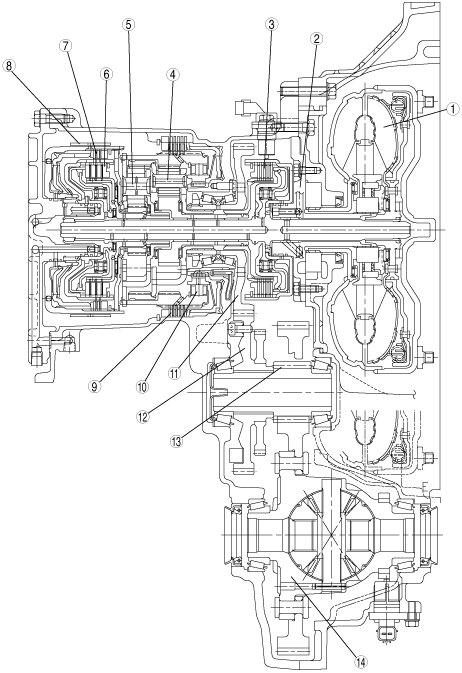

AUTOMATIC TRANSAXLE CROSS-SECTIONAL VIEW[FN4A-EL]
id051701101900
am3zzn00000624
|
|
1
|
Torque converter
|
|
2
|
Oil pump
|
|
3
|
Forward clutch
|
|
4
|
Front planetary gear
|
|
5
|
Rear planetary gear
|
|
6
|
3-4 clutch
|
|
7
|
Reverse clutch
|
|
8
|
2-4 brake band
|
|
9
|
Low and reverse brake
|
|
10
|
One-way clutch
|
|
11
|
Primary gear
|
|
12
|
Secondary gear
|
|
13
|
Output gear
|
|
14
|
Differential
|
