AT WARNING LIGHT CONSTRUCTION/OPERATION[FN4A-EL]

id051701103000

• The AT warning light is built into the instrument cluster.

• The AT warning light illuminates when the instrument cluster receives a warning signal from the PCM via CAN communication.

• The PCM sends a warning signal to the instrument cluster via CAN communication when it detects a malfunction.

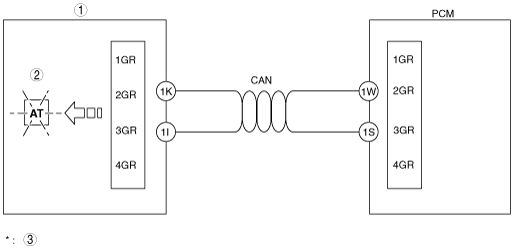

am3zzn00000620

1

Instrument cluster

2

AT warning light

3

This illustration shows the Z6 engine as a representative engine

1	Instrument cluster
2	AT warning light
3	This illustration shows the Z6 engine as a representative engine
