•  The light-weight, compact, and quiet trochoid gear type oil pump has been adopted to reduce the pump driving torque.

•  The direct drive type oil pump has been adopted and placed behind the torque converter.

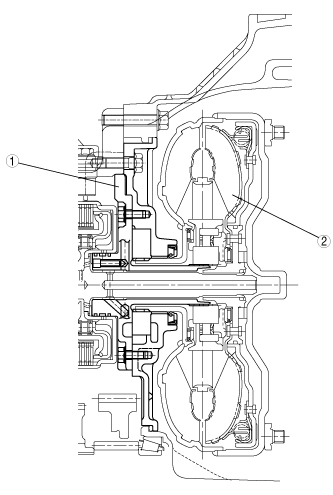

b3e0517t015

1	Oil pump
2	Torque converter
