TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR CONSTRUCTION/OPERATION[FN4A-EL]

id051701109000

•  The TFT sensor is a thermistor type and the resistance changes according to the ATF temperature.
•  The characteristic of the resistance is as shown in the figure below: when the ATF temperature increases, the resistance decreases, and when the ATF temperature decreases, the resistance increases.

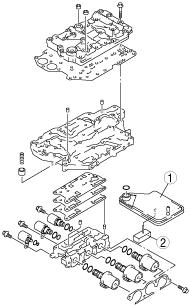

am3zzn00000606

1
Oil strainer
2
TFT sensor

am3zzn00000607

1
Resistance
2
ATF temperature
3
Characteristic of TFT sensor
4
Increases
