TRANSAXLE RANGE (TR) SWITCH CONSTRUCTION/OPERATION[FN4A-EL]

id051701109200

• A variable resistor type switch has been adopted for the transaxle range switch.

• Because the transaxle range switch and the selector lever are connected by the selector cable, the transaxle range switch indicates a specified resistance according to selector lever operation and from this the PCM determines the selector lever position. The corresponding signal are sent from the PCM to other related parts.

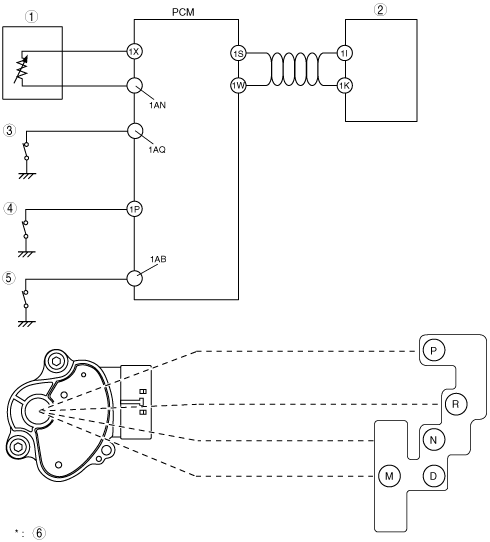

am3zzn00000589

1

TR switch

2

Instrument cluster

3

M range switch

4

Up switch

5

Down switch

6

This illustration shows the Z6 engine as a representative engine

1	TR switch
2	Instrument cluster
3	M range switch
4	Up switch
5	Down switch
6	This illustration shows the Z6 engine as a representative engine
