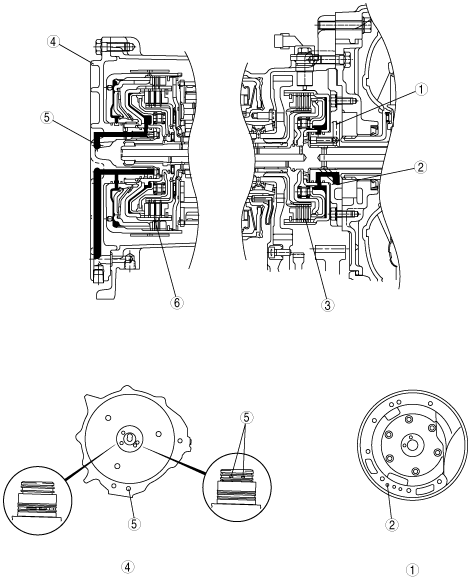

•  By designing exclusive passages for the forward clutch and the 3-4 clutch in the transaxle case, via the oil pump and end cover the hydraulic pressure passages are shortened and control during clutch engagement is improved.

am3zzn00001181

1	Oil pump
2	Forward clutch hydraulic passage
3	Forward clutch
4	End cover
5	3-4 clutch hydraulic passage
6	3-4 clutch
