•  The control valve body is composed of three bodies: the upper control valve body, main control valve body, and the solenoid control valve body.

•  Because the clutch engagement pressure is controlled electronically, the hydraulic circuits are simplified, the valve types are reduced, and the control valve body is miniaturized.

•  The nonwoven fabric oil strainer is installed in the control valve body to prevent contamination.

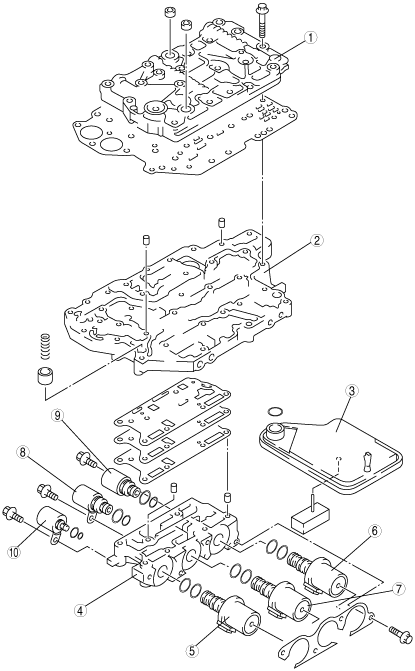

am3zzn00000602

1	Upper control valve body
2	Main control valve body
3	Oil strainer
4	Solenoid valve body
5	Shift solenoid A
6	Shift solenoid B
7	Shift solenoid C
8	Shift solenoid D
9	Shift solenoid E
10	Pressure control solenoid
