•  By changing the electrical current value (0 A—1 A) inside the solenoid, the pressure control solenoid adjusts the hold power of the hold pressure valve, controlling the pressure control solenoid pressure to the prescribed hydraulic pressure.

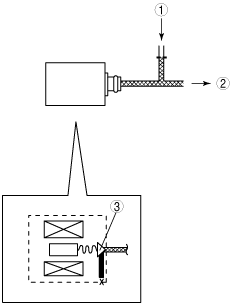

b3e0517t030

1	Solenoid reducing pressure
2	To pressure regulator valve
3	Hold pressure valve

b3e0517t031

1	Hydraulic pressure
2	Electrical current value
3	Pressure control solenoid pressure
