POWER FLOW OPERATION[FN4A-EL]
id051701111300
Component description
|
Component |
Function |
|---|---|
|
Forward clutch
|
• Transmits the input torque from the turbine shaft to the front sun gear.
• Operates in the forward range of the first, second, or third gear position.
|
|
3-4 clutch
|
• Transmits the input torque from the turbine shaft to the rear planetary carrier.
• Operates in the forward range of the third or fourth gear position.
|
|
Reverse clutch
|
• Transmits the input torque from the turbine shaft to the rear sun gear.
• Operates when the vehicle is backing up.
|
|
2-4 brake band
|
• Locks rotation of the reverse drum and fixes the rear sun gear.
• Operates in the second or fourth gear position.
|
|
Low and reverse brake
|
• Fixes the rotation of the front internal gear.
• Operates when the vehicle is backing up or in the first gear position (M range 1GR).
|
|
One-way clutch
|
• Locks the counterclockwise rotation of the front internal gear in the first gear position.
|
|
Planetary gear
|
• The planetary gear functions as a transmission due to the engagement/ disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.
|

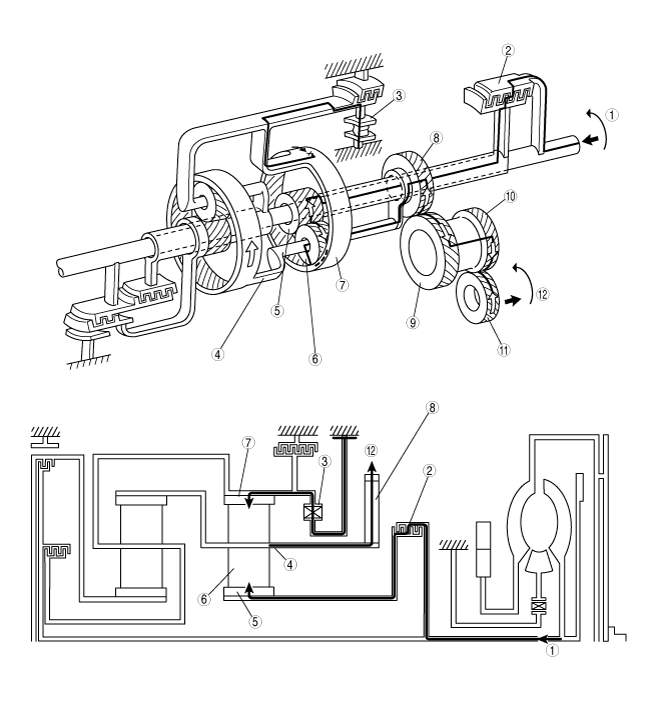

1GR (D range)
b3e0517t005
|
|
1
|
Input
|
|
2
|
Forward clutch
|
|
3
|
One-way clutch
|
|
4
|
Front planetary carrier
|
|
5
|
Front sun gear
|
|
6
|
Front pinion gear
|
|
7
|
Front internal gear
|
|
8
|
Primary gear
|
|
9
|
Secondary gear
|
|
10
|
Output gear
|
|
11
|
Ring gear (Differential)
|
|
12
|
Output
|

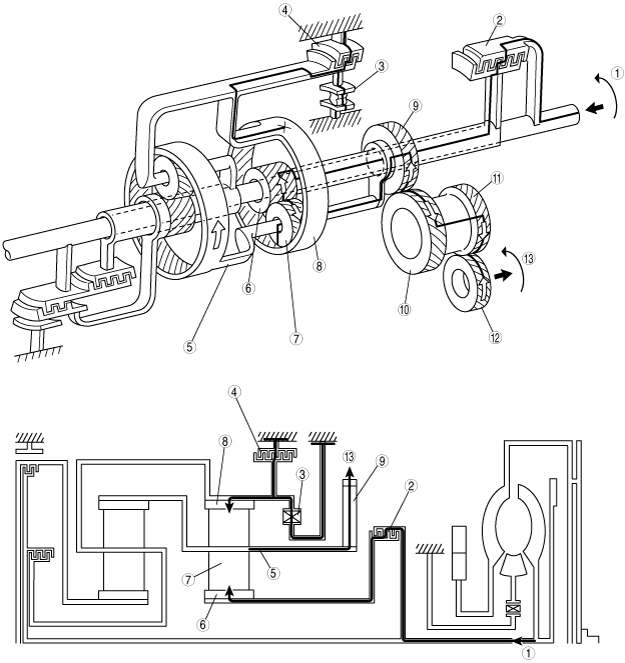

1GR (M range)
b3e0517t006
|
|
1
|
Input
|
|
2
|
Forward clutch
|
|
3
|
One-way clutch
|
|
4
|
Low and reverse brake
|
|
5
|
Front planetary carrier
|
|
6
|
Front sun gear
|
|
7
|
Front pinion gear
|
|
8
|
Front internal gear
|
|
9
|
Primary gear
|
|
10
|
Secondary gear
|
|
11
|
Output gear
|
|
12
|
Ring gear (Differential)
|
|
13
|
Output
|

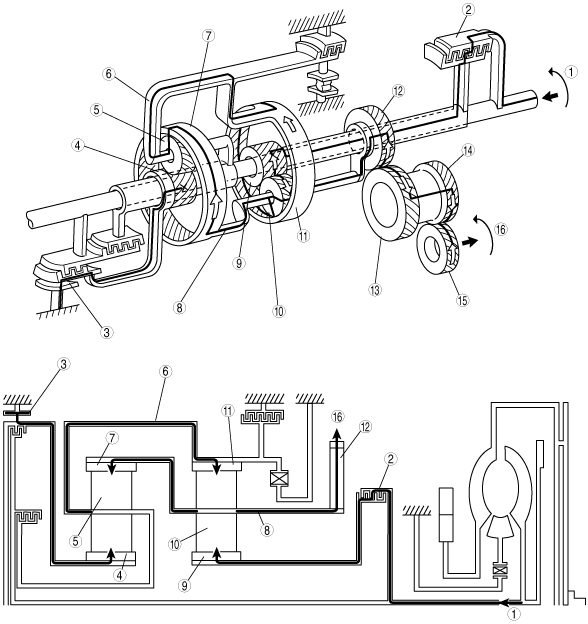

2GR
b3e0517t007
|
|
1
|
Input
|
|
2
|
Forward clutch
|
|
3
|
2-4 brake band
|
|
4
|
Rear sun gear
|
|
5
|
Rear pinion gear
|
|
6
|
Rear planetary carrier
|
|
7
|
Rear internal gear
|
|
8
|
Front planetary carrier
|
|
9
|
Front sun gear
|
|
10
|
Front pinion gear
|
|
11
|
Front internal gear
|
|
12
|
Primary gear
|
|
13
|
Secondary gear
|
|
14
|
Output gear
|
|
15
|
Ring gear (Differential)
|
|
16
|
Output
|

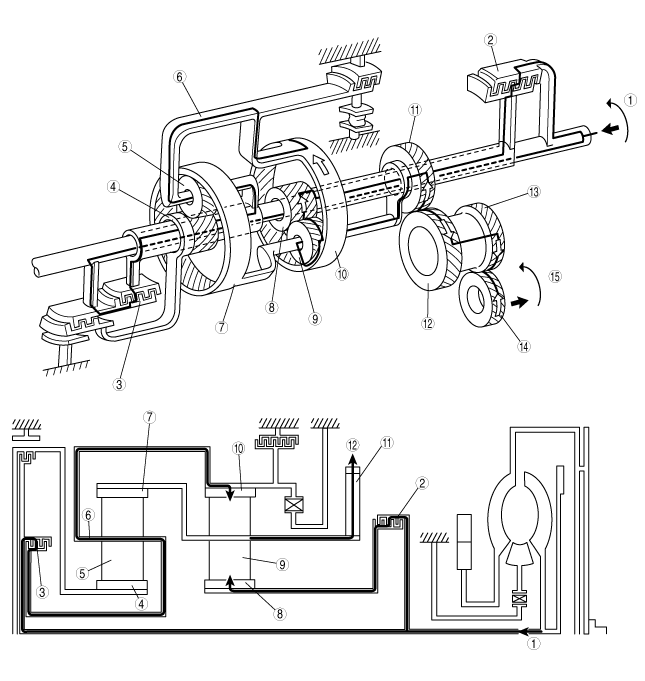

3GR
b3e0517t008
|
|
1
|
Input
|
|
2
|
Forward clutch
|
|
3
|
3-4 clutch
|
|
4
|
Rear sun gear
|
|
5
|
Rear pinion gear
|
|
6
|
Rear planetary carrier
|
|
7
|
Rear internal gear
|
|
8
|
Front sun gear
|
|
9
|
Front pinion gear
|
|
10
|
Front internal gear
|
|
11
|
Primary gear
|
|
12
|
Secondary gear
|
|
13
|
Output gear
|
|
14
|
Ring gear (Differential)
|
|
15
|
Output
|

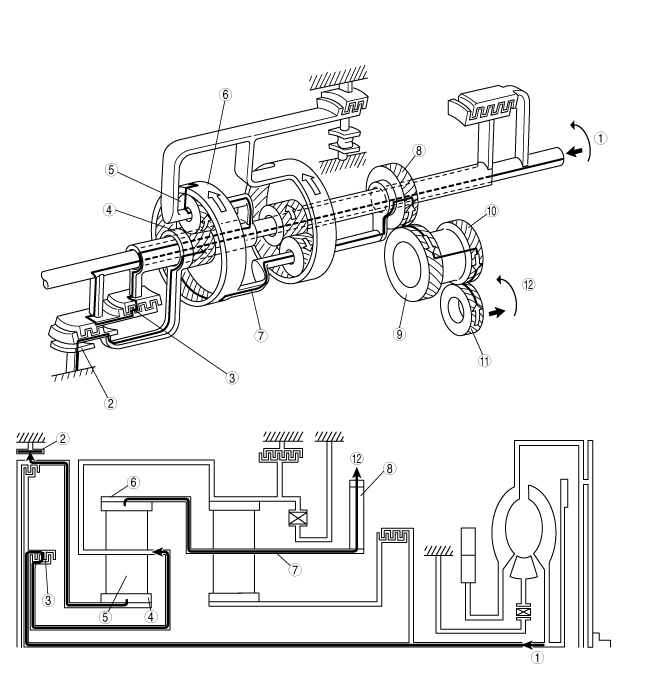

4GR
b3e0517t009
|
|
1
|
Input
|
|
2
|
2-4 brake band
|
|
3
|
3-4 clutch
|
|
4
|
Rear sun gear
|
|
5
|
Rear pinion gear
|
|
6
|
Rear internal gear
|
|
7
|
Front planetary carrier
|
|
8
|
Primary gear
|
|
9
|
Secondary gear
|
|
10
|
Output gear
|
|
11
|
Ring gear (Differential)
|
|
12
|
Output
|

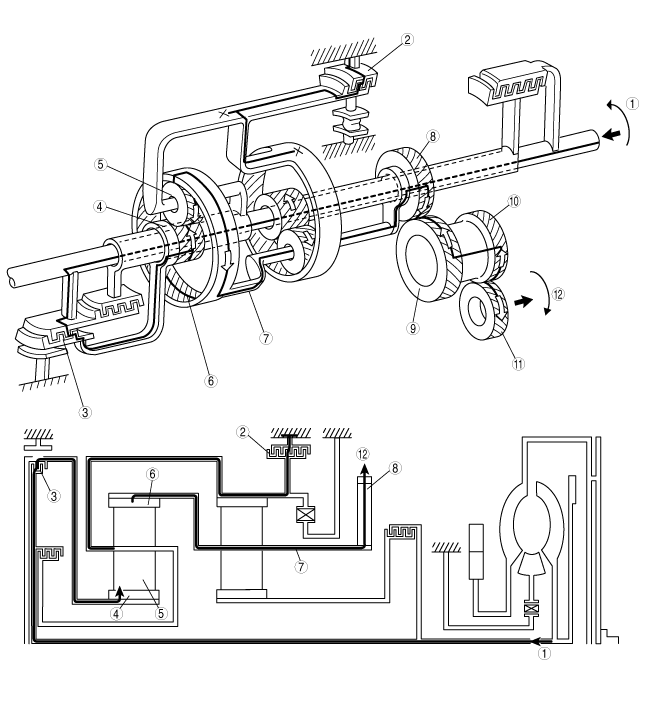

R position
b3e0517t010
|
|
1
|
Input
|
|
2
|
Low and reverse brake
|
|
3
|
Reverse clutch
|
|
4
|
Rear sun gear
|
|
5
|
Rear pinion gear
|
|
6
|
Rear internal gear
|
|
7
|
Front planetary carrier
|
|
8
|
Primary gear
|
|
9
|
Secondary gear
|
|
10
|
Output gear
|
|
11
|
Ring gear (Differential)
|
|
12
|
Output
|
