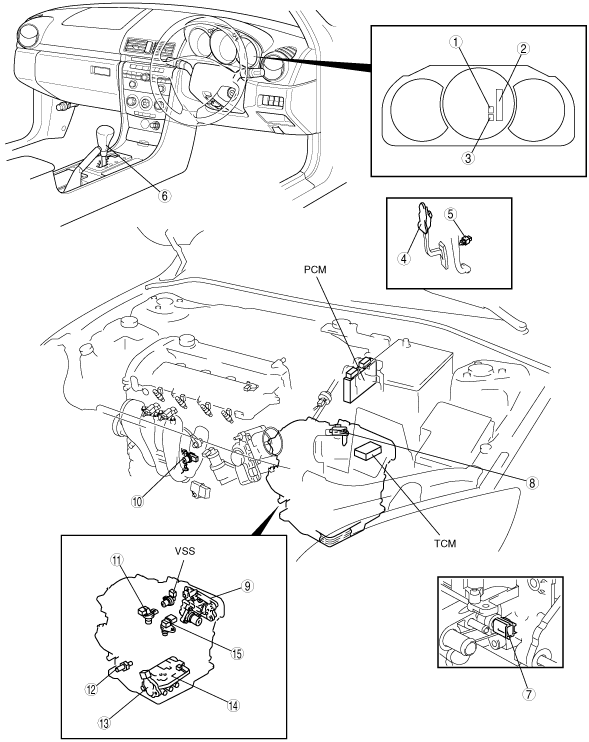

ELECTRONIC CONTROL SYSTEM CONSTRUCTION[FS5A-EL]
id051721100100
am3zzn00001115
|
|
1
|
AT warning light
|
|
2
|
Selector indicator light
|
|
3
|
Gear position indicator light
|
|
4
|
Accelerator pedal position sensor
|
|
5
|
Brake switch
|
|
6
|
Selector lever
• M range switch
• Up switch
• Down switch
|
|
7
|
ECT sensor
|
|
8
|
MAF sensor
|
|
9
|
Secondary control valve body
• Shift solenoid F
• Pressure control solenoid B
|
|
10
|
CKP sensor
|
|
11
|
Input/turbine speed sensor
|
|
12
|
Oil pressure switch
|
|
13
|
TR switch
|
|
14
|
Primary control valve body
• Shift solenoid A, B, C, D, E
• Pressure control solenoid A
• TFT sensor
|
|
15
|
Intermediate sensor
|
