TORQUE CONVERTER OUTLINE[FS5A-EL]


id051721100700

•  The torque converter clutch mechanism mechanically engages the pump impeller and the turbine runner under a specified condition, and transmits the power, not through the fluid, but directly, preventing the slip loss of the torque converter.
•  The torque converter has obtained sufficient transaxle efficiency and torque converting ratio that matches the output characteristic of each engine.

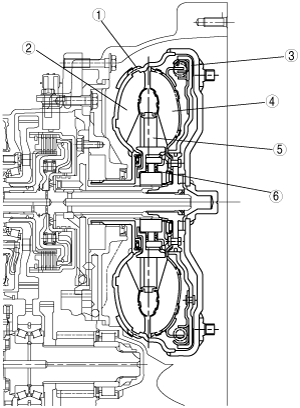

am3zzn00001048

1
Torque converter
2
Pump impeller
3
TCC piston
4
Turbine runner
5
Stator
6
One-way clutch
