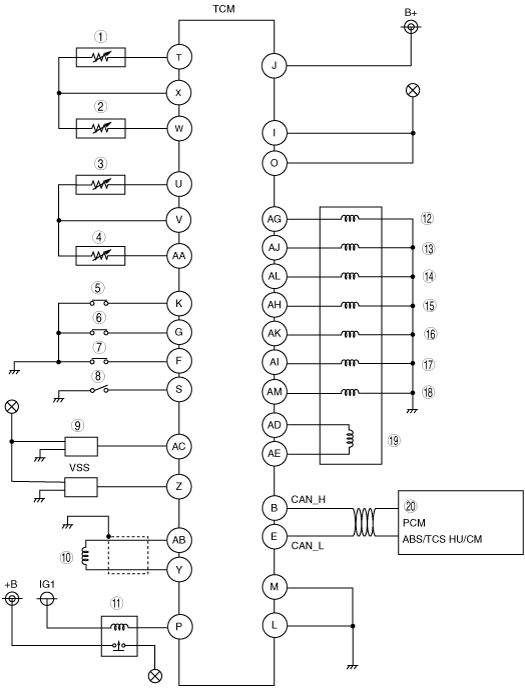

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM[FS5A-EL]
id051721102000
am3zzn00001469
|
|
1
|
Steering shift switch
|
|
2
|
Cruise control switch
|
|
3
|
TR switch
|
|
4
|
TFT sensor
|
|
5
|
M range switch
|
|
6
|
Up switch
|
|
7
|
Down switch
|
|
8
|
Oil pressure switch
|
|
9
|
Intermediate sensor
|
|
10
|
Input/turbine speed sensor
|
|
11
|
AT main relay
|
|
12
|
Shift solenoid A
|
|
13
|
Shift solenoid B
|
|
14
|
Shift solenoid C
|
|
15
|
Shift solenoid D
|
|
16
|
Shift solenoid E
|
|
17
|
Shift solenoid F
|
|
18
|
Pressure control solenoid B
|
|
19
|
Pressure control solenoid A
|
|
20
|
Instrument cluster
|
|
21
|
Steering shift switch
|
