TRANSAXLE RANGE (TR) SWITCH CONSTRUCTION/OPERATION[FS5A-EL]


id051721109200

•  A variable resistor type switch has been adopted for the transaxle range switch.
•  Because the transaxle range switch and the selector lever are connected by the selector cable, the transaxle range switch indicates a specified resistance according to selector lever operation and from this the TCM determines the selector lever position. The corresponding signal are sent from the TCM to other related parts.

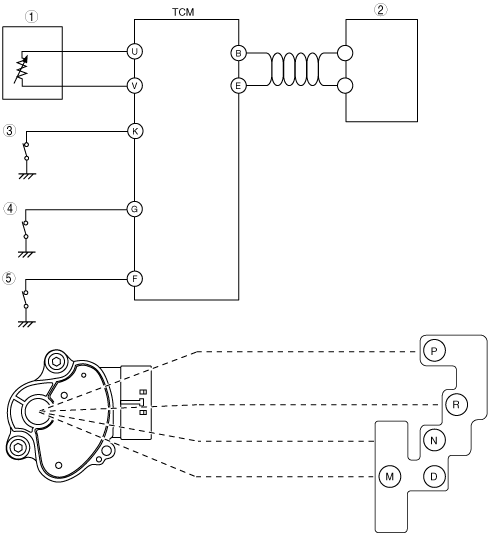

am3zzn00001111

1
TR switch
2
Instrument cluster
3
M range switch
4
Up switch
5
Down switch
