POWER FLOW STRUCTURE[FS5A-EL]

id051721111500

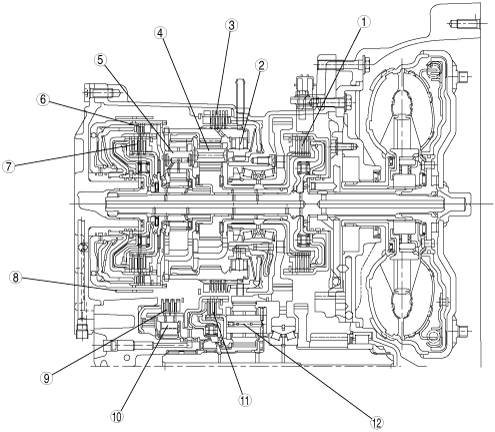

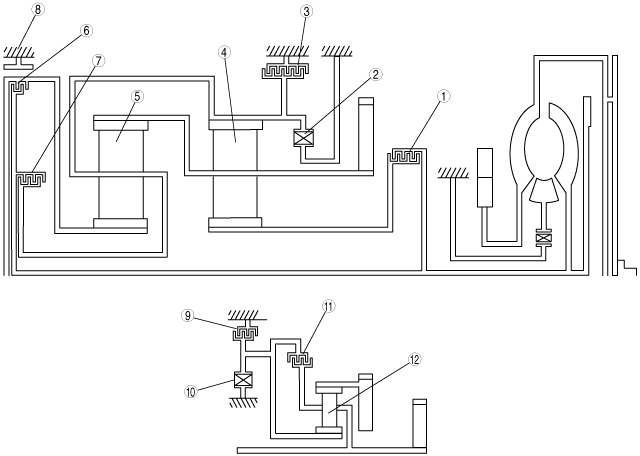

•  The powertrain mechanism of the FS5A-EL type consists of four pairs of clutches, two pairs of brakes, band brake, two pairs of one-way clutches, and three pairs of single type planetary gears.
am3zzn00001073
am3zzn00001074

1
Forward clutch
2
One-way clutch No.1
3
Low and reverse brake
4
Front planetary gear
5
Rear planetary gear
6
Reverse clutch
7
3-4 clutch
8
2-4 brake band
9
Reduction brake
10
One-way clutch No.2
11
Direct clutch
12
Secondary planetary gear
