CONTROL VALVE BODY CONSTRUCTION[FS5A-EL]

id051721113100

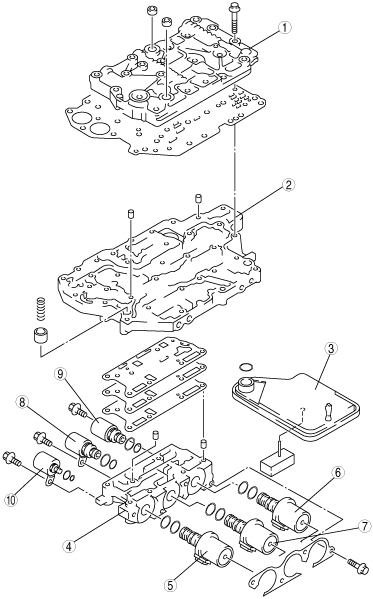

Primary Control Valve Body

• The primary control valve body is composed of three bodies: the upper control valve body, main control valve body, and the solenoid control valve body.

am3zzn00001075

1

Upper control valve body

2

Main control valve body

3

Oil strainer

4

Solenoid valve body

5

Shift solenoid A

6

Shift solenoid B

7

Shift solenoid C

8

Shift solenoid D

9

Shift solenoid E

10

Pressure control solenoid A

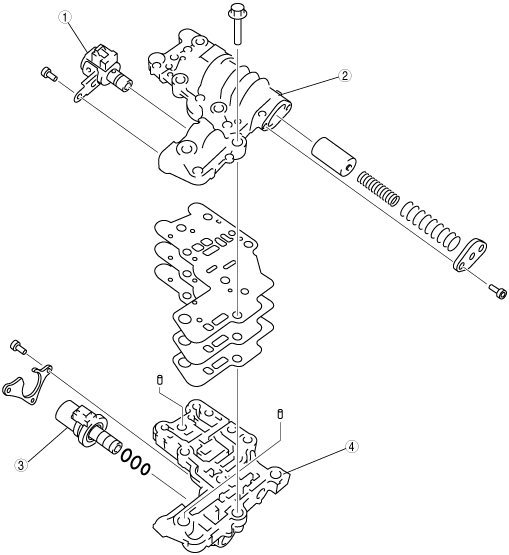

Secondary Control Valve Body

• The secondary control valve body is composed of two bodies: the secondary lower control valve body, and secondary main control valve body.

am3zzn00001076

1

Shift solenoid F

2

Secondary lower control valve body

3

Pressure control solenoid B

4

Secondary main control valve body

1	Upper control valve body
2	Main control valve body
3	Oil strainer
4	Solenoid valve body
5	Shift solenoid A
6	Shift solenoid B
7	Shift solenoid C
8	Shift solenoid D
9	Shift solenoid E
10	Pressure control solenoid A

1	Shift solenoid F
2	Secondary lower control valve body
3	Pressure control solenoid B
4	Secondary main control valve body
