•  By changing the electrical current value (0 A—1 A) inside the solenoid, the pressure control solenoid A adjusts the hold power of the hold pressure valve, controlling the pressure control solenoid pressure to the prescribed hydraulic pressure.

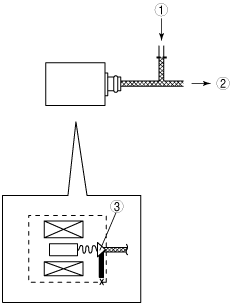

am3zzn00001101

1	Solenoid reducing pressure
2	To pressure regulator valve
3	Hold pressure valve

am3zzn00001102

1	Hydraulic pressure
2	Electrical current value
3	Pressure control solenoid pressure
