INTERMEDIATE SENSOR REMOVAL/INSTALLATION[FS5A-EL]

id051721807200

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

•  If foreign materials are stuck to the intermediate sensor, disturbance by magnetic flux can cause sensor output to be abnormal and thereby negatively affect control. Make sure that foreign materials such as iron filings are not stuck to the intermediate sensor during installation.

1.  Remove the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

2.  Disconnect the negative battery cable.

3.  Remove the battery, battery box and battery tray. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

4.  Disconnect the intermediate sensor connector.

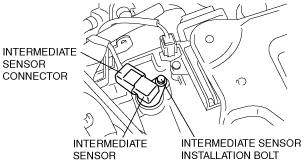

am3zzw00003574

5.  Remove the intermediate sensor.

6.  Apply ATF to a new O‐ring and install it on a new intermediate sensor.

7.  Install the intermediate sensor.

8.  Connect the intermediate sensor connector.

9.  Install the battery, battery box and battery tray. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)

10.  Connect the negative battery cable.

11.  Install the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION[LF, L3].)
